Preamble

la Vitre has been designed to integrate into a wide variety of IT environments. The solution supports multiple deployment configurations in order to respect your infrastructure, your security policies and your internal needs (firewall, proxy, SSL inspection, corporate master image, flow sovereignty, etc.).

This document presents all the possibilities offered by la Vitre for hardware installation, network architecture, flow configuration, authentication, and access management. You will find the different options available with their technical implications, so you can choose the most suitable configuration for your context.

The sections below detail each aspect of deploying la Vitre in your infrastructure.

Hardware environment

la Vitre comes with a ready-to-use Mini-PC: up-to-date Windows 11 Pro, la Vitre application installed, camera and microphone drivers configured.

Operating system
Windows 11 Pro
Windows Update configured for automatic updates
Connectivity
Ethernet / Wi-Fi
Wired connection recommended for stability

Using your own master on the provided Mini-PC Optional

You can deploy your own master (system image) on the Mini-PC. This allows you to apply your internal security and compliance policies: antivirus, GPO, network configuration, corporate certificates, etc.

You deploy your Windows 11 image on the Mini-PC, and the la Vitre application is then installed.

The camera and microphone drivers must be added to the Mini-PC to ensure proper operation of the audio/video flows.

Driver Description Link
Microphone driver Microphone driver Download
LOGI TUNE Logitech camera driver and software Download

Kiosk mode Optional

Kiosk mode is a native Windows 11 feature that locks the Mini-PC to a single application: la Vitre. The user cannot access the Windows desktop, the taskbar, settings or any other applications. This configuration ensures a secure, dedicated and tamper-proof device, ideal for shared or public spaces.

The la Vitre application displays in permanent full-screen mode and a dedicated parameter prevents it from being minimized, ensuring a locked experience on the application.

To simplify the deployment of Kiosk mode, we provide a reference PowerShell script that handles: creating a dedicated user account, configuring the firewall, installing la Vitre on the account, and setting up automatic Windows login.

File Description Link
kioskInstall.ps1 PowerShell script to install Kiosk mode Download
lavitreAssignedAccess.xml Assigned Access account configuration Download

Network architecture

The diagram below illustrates the network flows between la Vitre devices, the Companion Application and the la Vitre Cloud infrastructure.

LAN 1 V1 V2 Companion Mobile / web app Guest access Browser ROUTER / PROXY LA VITRE CLOUD API STUN / TURN LAN 2 V3 Companion Mobile / web app Guest access Browser ROUTER / PROXY LAN 3 / 5G Guest access Browser ROUTER / PROXY
Click on a device (V1, V2, V3, Companion, Guest access) or a cloud service (API, STUN/TURN) to isolate its flows. Click again to show everything.
End-to-end encryption
Audio, video and data flows are encrypted from Vitre to Vitre - only the destination Vitre can decrypt them.
Outbound flows only
All connections are initiated from your LAN. No inbound port needs to be opened on your firewall.

Connection establishment

  1. WebSocket connection to the API
    • Licensing / authentication
    • Notifications (Guest join, Settings changed, Space change...)
  2. ICE Discovery (RFC 5245)
    • Local IPs
    • STUN/TURN call (if enabled): router IPs + relay IPs
  3. Endpoint exchange via the API
  4. Peer-to-peer connection in order:
    • Local IPs
    • Router IPs
    • Relay (TURN)

Network flows
always initiated from the LAN

HTTPS / WebSocket TCP 443
STUN / TURN TCP/UDP 443 & 3478
Video / Audio / Data E2E encrypted WebRTC - dynamic UDP/TCP

Network diagnostic page

https://lavitre.me/diag

Data encryption

All exchanges between the different services and devices are encrypted, ensuring confidentiality and integrity of data.

End-to-end encryption

Audio/video flows are encrypted via SRTP + DTLS-SRTP. Keys are negotiated per session directly between the Vitres and are never persisted. Only the destination Vitre (for example V1) can decrypt and read the flow emitted by another Vitre (for example V2) - neither the relay servers, the routers, nor the la Vitre infrastructure can access the content.

Outbound flows only

All network connections are initiated from the LAN to the outside (la Vitre Cloud). No inbound flow is ever initiated from the Internet to your network. This means no inbound port needs to be opened on your firewall: only outbound rules need to be configured. This design ensures a minimal attack surface on the infrastructure side.

Ciphers used for the APIs

  • TLS_AES_256_GCM_SHA384 (TLS 1.3 only)
  • TLS_AES_128_GCM_SHA256 (TLS 1.3 only)
  • TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
  • TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
  • TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384
  • TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256
  • TLS_DHE_RSA_WITH_AES_256_GCM_SHA384
  • TLS_DHE_RSA_WITH_AES_128_GCM_SHA256

Ciphers used for WebRTC

  • TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256

Network configuration

What is your network configuration?

Identify the elements present in your infrastructure to determine the required openings.

Open network

No proxy, no application filtering, direct Internet access.

Action: No specific configuration required. la Vitre works natively.

Firewall with filtering

Only certain outbound ports are allowed.

Action: Open the ports and domains listed in the sections below.

HTTP / HTTPS Proxy

Web traffic via proxy (Zscaler, Squid, BlueCoat...).

Action: Whitelist domains + WebSocket support. See proxy section below.

SSL Inspection / UDP blocked

SSL decryption (MITM), UDP blocking, VDI...

Action: SSL exclusions + TURN TCP fallback. See proxy section below.

Application flows (HTTPS + WebSocket)

Web application, REST API, real-time signaling
Required

These flows are essential for the operation of la Vitre and the Companion Application. They all go through port 443/TCP.

Flow Domains Port Protocol Direction
Main APIs lavit.re, *.lavit.re 443 HTTPS / TLS 1.3 Outbound
WebSocket (real-time) lavit.re, *.lavit.re 443 WSS / TLS 1.3 Outbound
Companion Application *.lavitre.me, lavitre.me 443 HTTPS / TLS 1.3 Outbound
Guest space *.lavitre.space, lavitre.space 443 HTTPS / TLS 1.3 Outbound
Static content / updates storage.lavit.re 443 HTTPS / TLS 1.3 Outbound
Embedded applications *.extensions.lavit.re, *.apps.lavit.re 443 HTTPS / TLS 1.3 Outbound
Analytics insights.lavit.re 443 HTTPS / TLS 1.3 Outbound
Minimum TLS: la Vitre only accepts TLS 1.2+ (TLS 1.3 recommended). SSL/TLS < 1.2, MD5, SHA-1, DES and RC4 protocols are strictly prohibited.

Audio / video / data flows (WebRTC)

Screen sharing, real-time media flows
Required

In addition to the application flows. Media flows use WebRTC with end-to-end encryption (SRTP + DTLS).

Flow Domains Port Protocol Direction
STUN (NAT discovery) stun.lavit.re 443 TCP & UDP Outbound
TURN (media relay) *.relay.lavit.re 443 TCP & UDP Outbound

End-to-end encryption: Audio/video flows are encrypted via SRTP + DTLS-SRTP. Keys are negotiated per session directly between the Vitres and are never persisted. Only the destination Vitre (for example V1) can decrypt and read the flow emitted by another Vitre (for example V2) - neither the relay servers, the routers, nor the la Vitre infrastructure can access the content.

QoS (Quality of Service): to guarantee a smooth audio/video experience, it is recommended to apply QoS best practices on your network. WebRTC packets are marked with standard DSCP values (EF / 46 for audio, AF41 / 34 for video, AF11 / 10 for data). Configure your network equipment (switches, routers, firewall) to prioritize these real-time flows over standard traffic, prefer UDP over TCP fallback, and monitor latency (< 150 ms), jitter (< 30 ms) and packet loss (< 1%) on the relevant paths.

Proxy

Additional openings if your network includes a proxy
Depends on your network

If your network includes a proxy, the following action is required.

Constraint Required configuration
HTTP/HTTPS Proxy Whitelist *.lavit.re, *.lavitre.me, *.lavitre.space. Support WebSocket upgrade (HTTP 101).

la Vitre Cloud relay server

By default, all Vitres use the relay servers hosted by la Vitre.

A TURN relay server is used by la Vitre to route encrypted WebRTC flows (audio, video, data) between two Vitres when the direct (peer-to-peer) connection cannot be established - for example due to symmetric NAT, restrictive firewalls or complex inter-network routes.

Internal relay server Optional

You can choose to deploy your own TURN relay server within your infrastructure to control the routing of encrypted flows.

Advanced configuration: This section is intended for authorized IT technicians. Deploying and maintaining a TURN server requires system and network administration skills.

To facilitate this setup, we document below the entire procedure: the presentation of coturn (the recommended open source TURN implementation), an example of a ready-to-use Docker deployment, the testing procedure for the server, and finally the configuration on the la Vitre side to switch the WebRTC flows to your internal server.

Presentation of coturn

Coturn is an open source relay server (TURN) that routes encrypted traffic between two Vitres when the direct (P2P) connection fails. It is the reference implementation of the TURN protocol.

Docker deployment:

mkdir coturn && chown -R 65534:65534 coturn

# coturn.conf
db=/var/lib/coturn/turndb
lt-cred-mech
fingerprint
realm=mydomain.com

# Start
docker run -d --name coturn --network host --restart always \
  -e DETECT_EXTERNAL_IP=yes -e DETECT_RELAY_IP=yes \
  -v $(pwd)/coturn:/var/lib/coturn \
  coturn/coturn:4.6.2 -c /var/lib/coturn/coturn.conf

# Add a user
docker exec coturn turnadmin -b /var/lib/coturn/turndb \
  -a -u myuser -r mydomain.com -p pass1234
Replace mydomain.com with your own domain name. For logs: add --log-file=stdout then docker logs coturn.

Test: visit Trickle ICE - URI: turn:<IP_or_FQDN>:3478

Configure in la Vitre: admin.lavitre.me → Advanced settings → WebRTC / ICE Servers → uncheck "use la Vitre shared servers" → add your server.

Parameter Description
use la Vitre shared servers Enables la Vitre shared TURN servers. Uncheck to use your own servers.
iceTransport Transport mode: all (default), relay (forces TURN) or none.
Local ICE Servers Servers used between this device and all participants.
Shared ICE Servers Servers transmitted automatically to all participants (guests, remote Vitres).

Access management and authentication

la Vitre is authenticated as a Device with the la Vitre Cloud infrastructure.

la Vitre does not store any user data.

la Vitre Cloud does not manage any user accounts (login / password).

A user does not authenticate on la Vitre.

To share content on la Vitre (Images, PDF, Videos...), the user uses the Companion Application on which they can be authenticated according to the authentication modes defined on la Vitre.

SSO (Single Sign-On)

If you use SSO, these domains must also be accessible from the network.

SSO Provider Domains to allow Port Protocol
Google Workspace accounts.google.com, *.googleapis.com 443 HTTPS (OAuth 2.0)
Microsoft / Azure AD login.microsoftonline.com, *.microsoft.com 443 HTTPS (OAuth 2.0)
Apple ID appleid.apple.com, *.apple.com 443 HTTPS (OAuth 2.0)
Magic Link (email) No additional domain 443 HTTPS
MFA: Multi-factor authentication is provided by the chosen SSO provider. No MFA configuration specific to la Vitre is required on the network side.

Microsoft SSO configuration

To authorize Microsoft SSO, an administrator with rights on your Active Directory (AD) must click the following URL:

https://login.microsoftonline.com/common/adminconsent?client_id=8925c51f-398a-4283-a02a-9f5df1f71cba&redirect_uri=https://lavitre.me

The administrator is then redirected to the Microsoft consent page, where they can review the permissions requested by la Vitre and approve authorization for the organization:

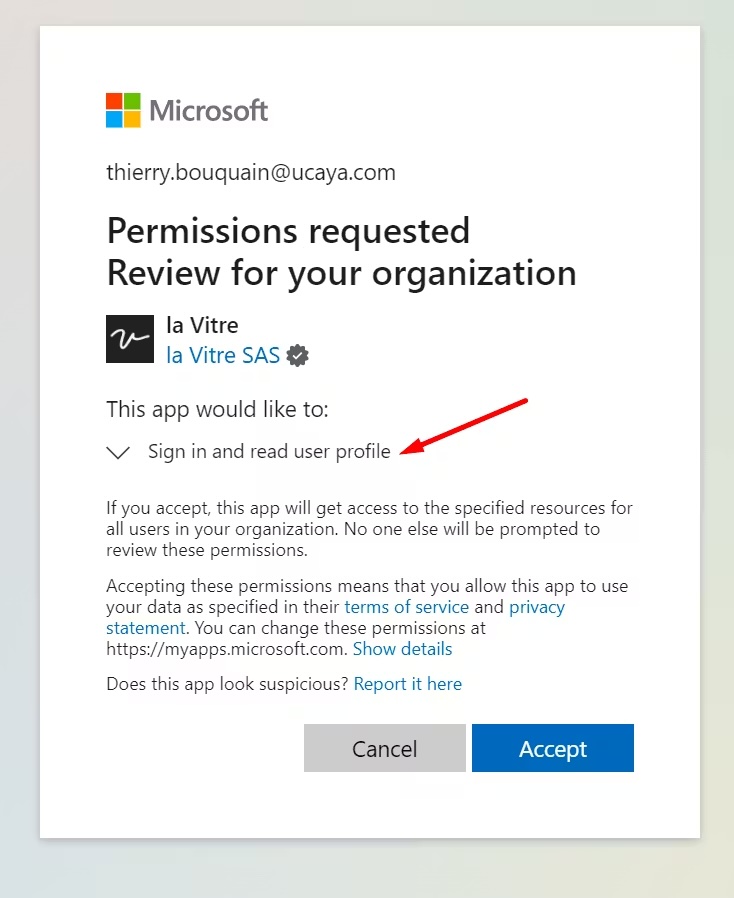

Microsoft consent page - la Vitre requests Sign in and read user profile
Requested information: the only data la Vitre requests is the user profile (First name, Last name, Email) and the ability to authenticate (Sign in and read user profile). No other permission is required.

Connection security levels for la Vitre

Each Vitre can be configured with different security levels that define how the Companion Application can connect to it. These parameters are accessible from the administration portal in the Vitre: Security parameters section.

Authentication mode:

Mode Description
Open No authentication required. A unique code is displayed on la Vitre and refreshed every minute to secure access.
User Account Authentication required. The user must log in with an account registered in the administration portal (via SSO or Magic Link). A unique code is displayed on la Vitre and refreshed every minute to secure access.

Cross-network remote access:

Option Description
Cross network remote access for anonymous users Allows anonymous users to connect to la Vitre from a different network (outside the local LAN).
Cross network remote access for authenticated users Allows authenticated users (SSO/Magic Link account) to connect to la Vitre from a different network (outside the local LAN).
Recommendation: For sensitive spaces, prefer the User Account mode and disable remote access for anonymous users. For open spaces (reception, public halls), the Open mode allows a frictionless experience.

Apps

Some applications integrated into la Vitre require access to third-party services. Allow the corresponding domains according to the enabled applications.

Application Domains to allow Port Protocol
Translation *.api.cognitive.microsoft.com, *.cognitiveservices.azure.com, *.speech.microsoft.com 443 HTTPS
Figma *.figma.com, *.figma.site, figma.app 443 HTTPS
YouTube *.youtube.com, *.youtube-nocookie.com, *.googlevideo.com, *.ytimg.com, *.gstatic.com 443 HTTPS
Miro *.miro.com, *.mirostatic.com, *.realtimeboard.com 443 HTTPS + WSS
Yellow *.getyellow.io 443 HTTPS

Summary table of flows

Flow Domain Port(s) Protocol Encryption Status
Main APIs lavit.re, *.lavit.re 443 TCP (HTTPS) TLS 1.3 / AES-256-GCM Required
WebSocket (real-time) sr.lavit.re 443 TCP (WSS) TLS 1.3 Required
Companion / Guests / Administration lavitre.me, *.lavitre.me, *.lavitre.space 443 TCP (HTTPS) TLS 1.3 Required
Apps & Content storage.lavit.re, *.extensions.lavit.re, *.apps.lavit.re 443 TCP (HTTPS) TLS 1.3 Required
STUN / TURN stun.lavit.re, turn.lavit.re, *.relay.lavit.re 443 TCP & UDP DTLS / SRTP (E2E) Required
Analytics insights.lavit.re 443 TCP (HTTPS) TLS 1.3 Required
SSO (by provider) See SSO section 443 TCP (HTTPS) TLS 1.3 Required

Deployment checklist

Administration portal

The administration portal allows you to manage all your Vitres from a centralized web interface. You can configure the advanced settings of each Vitre, monitor their status in real time, and manage the users of your company.

Prerequisites and administrator role

To access the administration portal and the advanced settings, you must be an administrator of your company.

  • During setup, our teams register your name and email address.
  • You are then autonomous to manage your Vitres: color, icon display, restart a Vitre, add a peripheral, etc.
  • We recommend at least two administrators per company. A dedicated training is provided by the Customer Success team.
  • An administrator has access to all Vitres in their group or company.

Connecting to the platform

  1. Open your browser and go to admin.lavitre.me
  2. Choose your SSO provider or click on "Continue with la Vitre": you will receive a connection link by email, click to validate access

Available menus

After connecting, you arrive on the dashboard with the list of Vitres of your company.

Menu Description
Vitres List and status of your Vitres
Users Rights management
Usage Usage statistics (presence, knock-knock, drawings, etc.)
